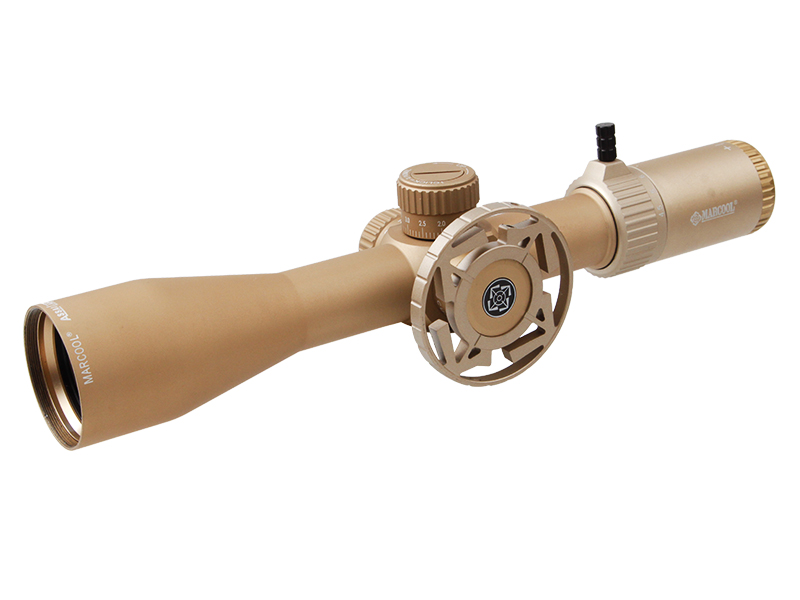

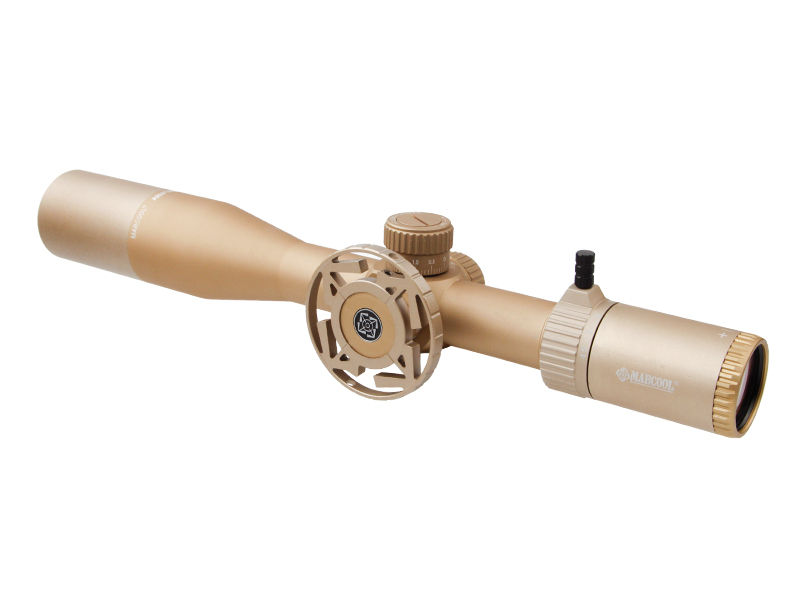

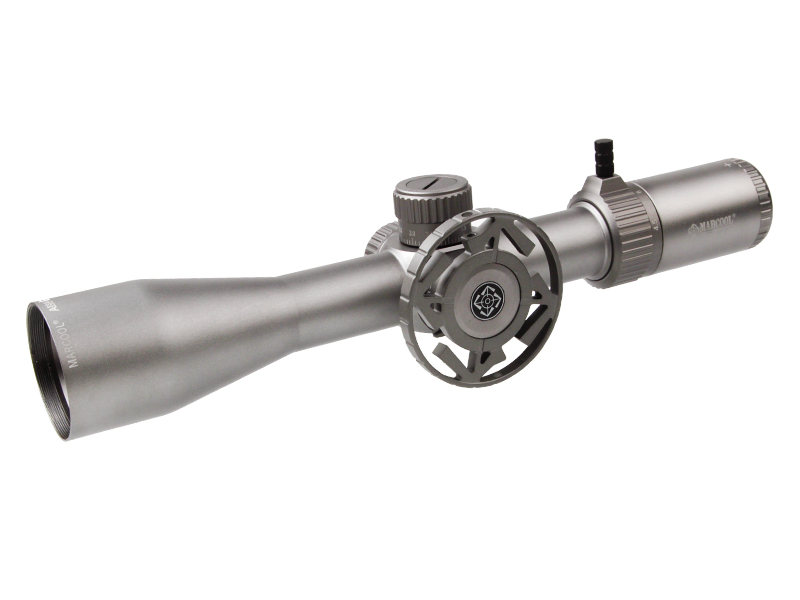

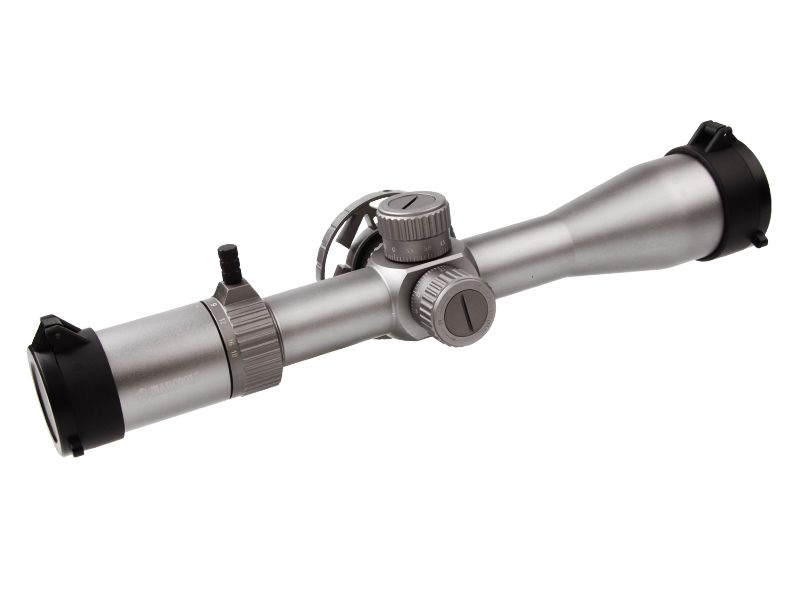

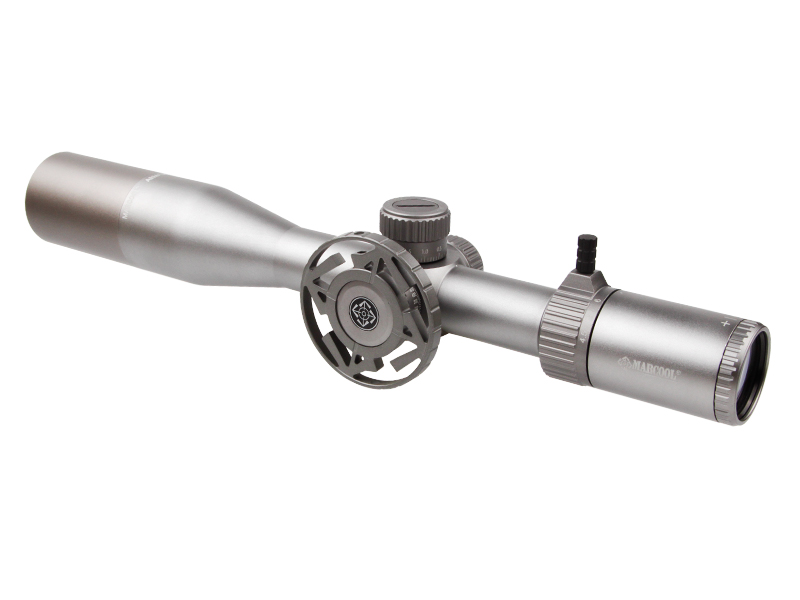

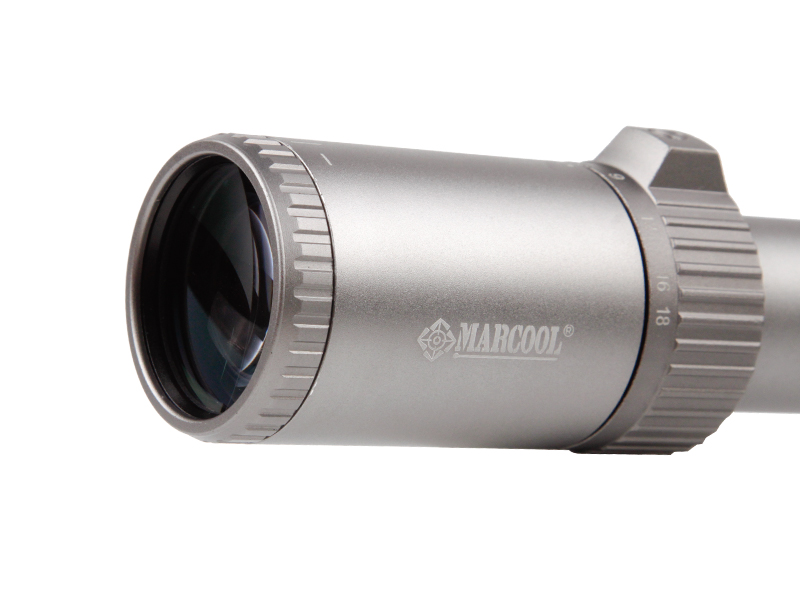

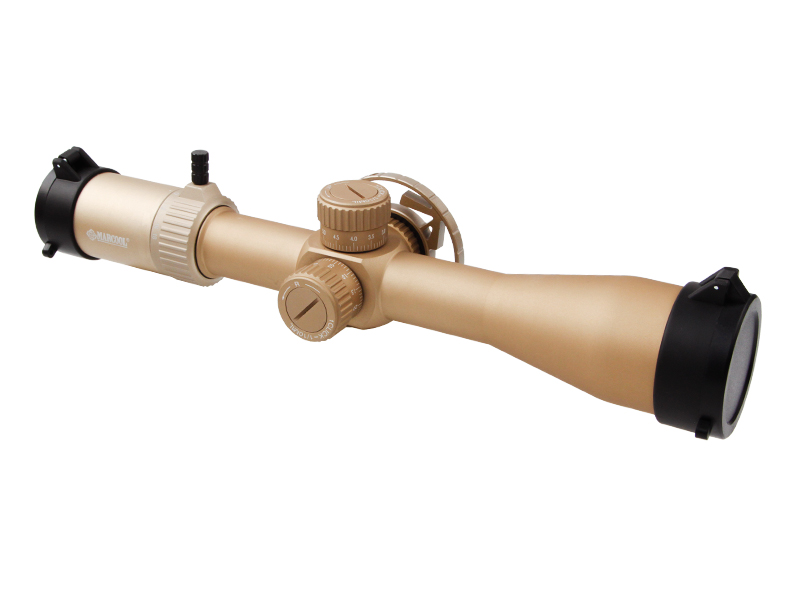

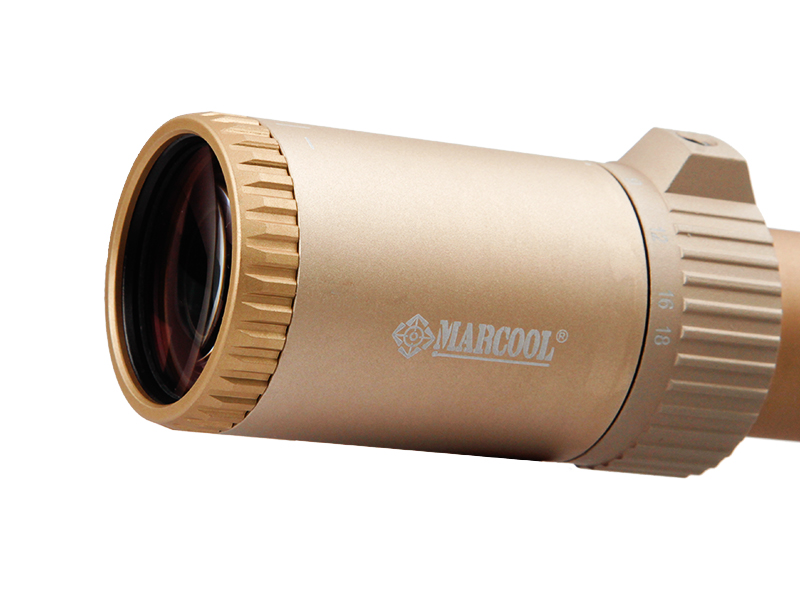

- Requirement: 4.5-18x50SF
- Magnification low power: 4.5
- Magnification high : 18

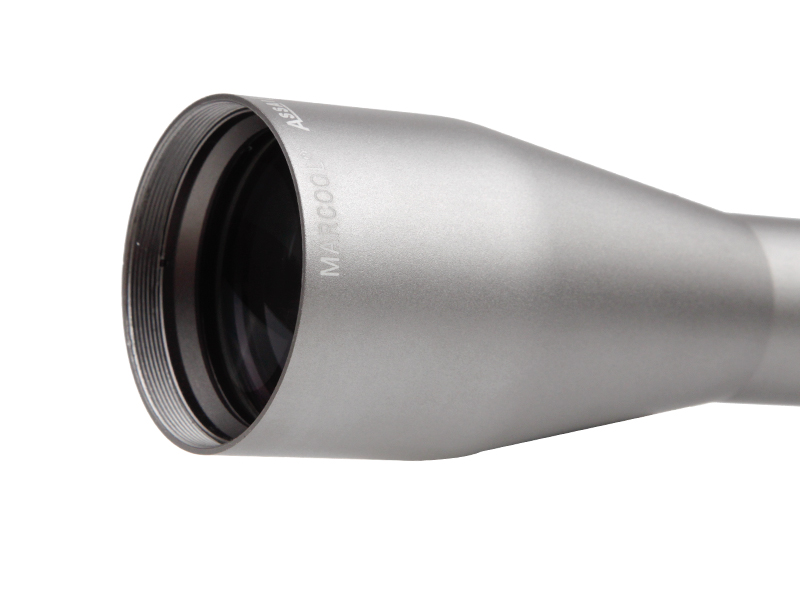

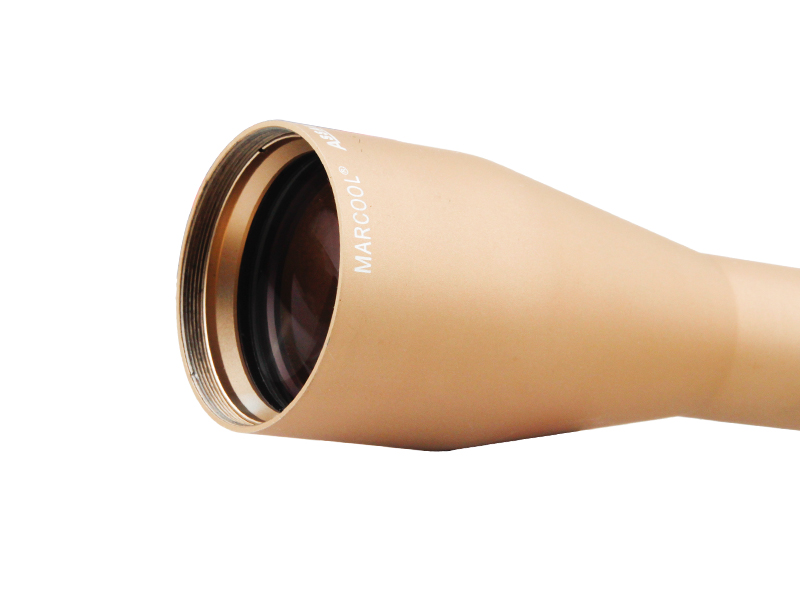

- Clear aperture (mm): 50
- Diopter range +/-: 2
- Eye relief: 96

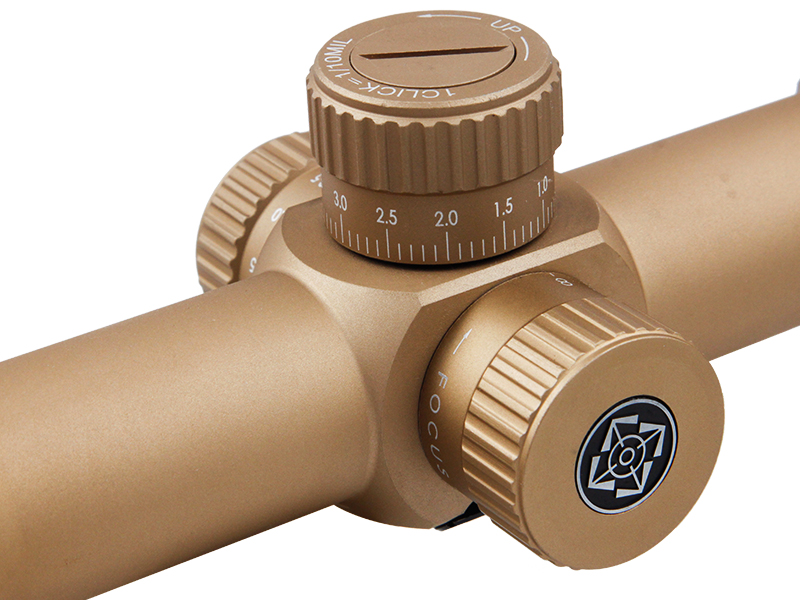

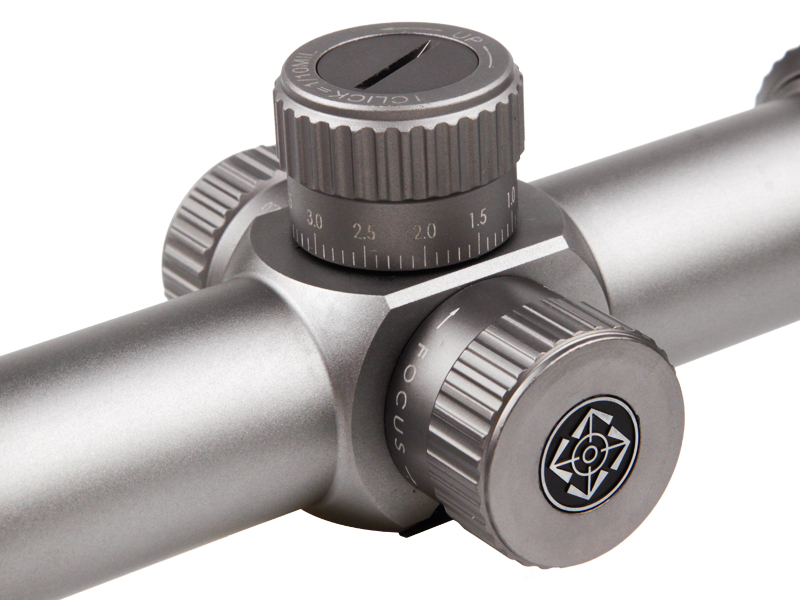

- Standard Klick value for E/W (MIL): 1/10MIL
- Total travel elevation (@ 100 yds): ≥ 45M0OA
- Total travel windage (@ 100 yds): ≥ 45M0OA
- Parallax Compensation: 15yds-∞
- Fast focus eyepiece: yes
- Sealing gas used: Nitrogen
- Clear aperture min magnification (mm): 50
- Clear aperture max magnification (mm): 50
- Eff. exit pupil diameter @ min. magnification ± 3 %: 11.11
- Eff. exit pupil diameter @ max. magnification ± 3 %: 2.78
- Maximum resolution in Arc. Second (min. Magnification): 4
- Maximum resolution in Arc. Second (max. Magnification): 4
- Range of Function temperature (Unit can still be operated): -25°C/+55°C
- Storage temperature: -40C to +85C
- Range of Dioptric compensation +/- dpt: 2
- Permissible backlash Dioptric Compensation: <0.25dpt
- objective field of view @ min magnification (ft @100yds): 28.3
- objective field of view @ max magnification (ft@100yds): 7.1
- Change of impact point after change of magnification (MOA): 1

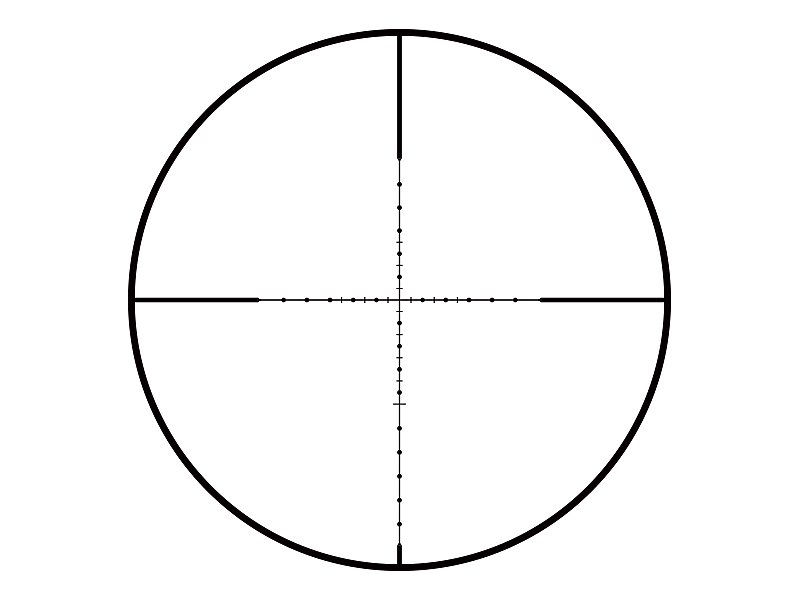

- Straightening of the Reticle: ± 2 °
- Coating: FMC
- weight: 562g
- length: 320mm
